Medium edge banding machine

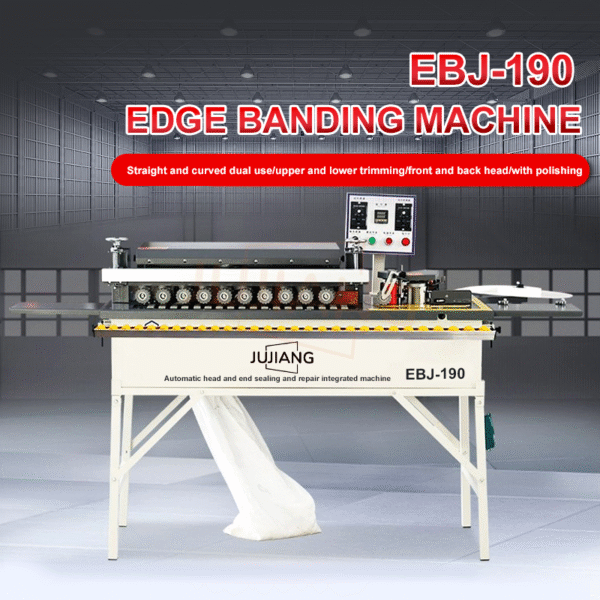

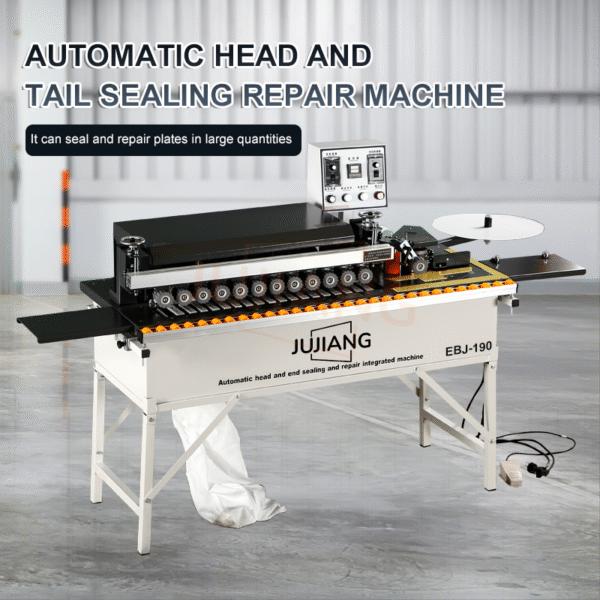

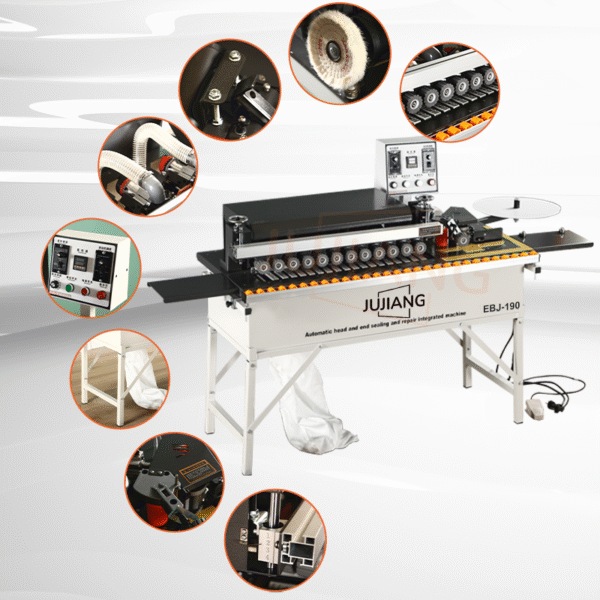

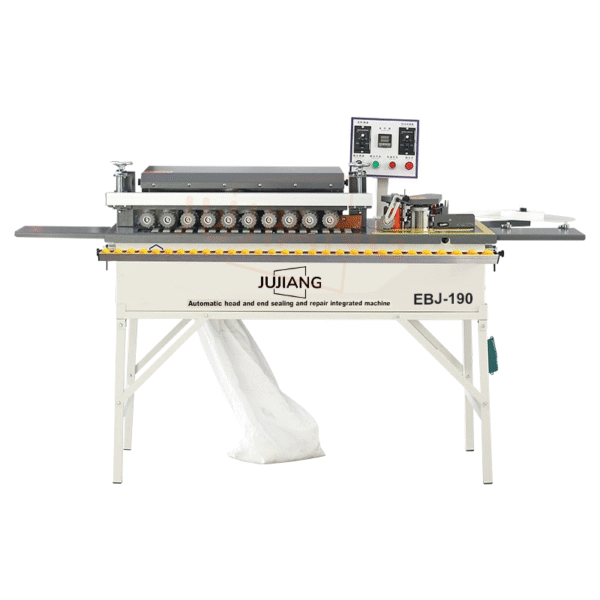

EBJ190Z Miniature Fully Automatic Curved and Straight Dual-purpose Edge Banding Machine

EBJ109Z full AUTOMATIC EDGE BANDING MACHINE WITH GLUING,TRIMMING,BUFFINGand END CUTTING,Curved and straight edge banding,pvc wood edge banding machine for MDF,Laminated panel is suitable formedium density fiber board, blockboard.

Get A Quote

Leave a Message

Please fill in the form with your details and we will get back to you as soon as possible.

Contact Us
Features
1. The EBJ190Z automatic edge banding machine is very small and does not require a large workplace

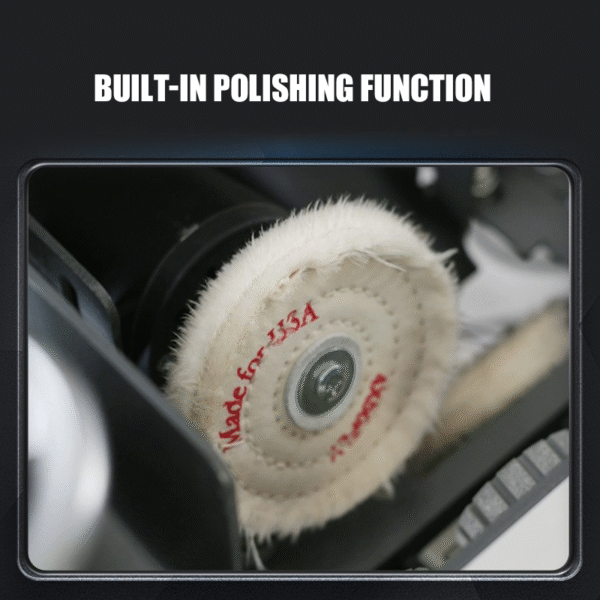

2. The EBJ190Z Edge bander is fully functional and can automatically gluing trimming, end cutting, bufing ,curved and straight edge banding
3. It uses an enlarged cylinder, and its maximum cutting thickness of edge banding reaches 3mm.

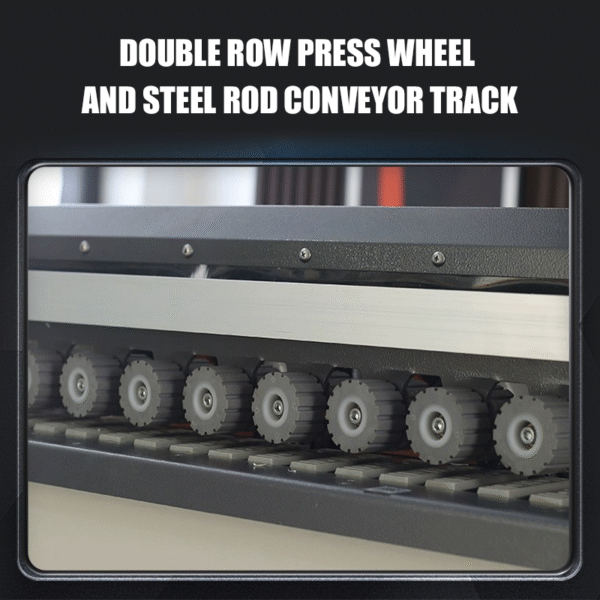

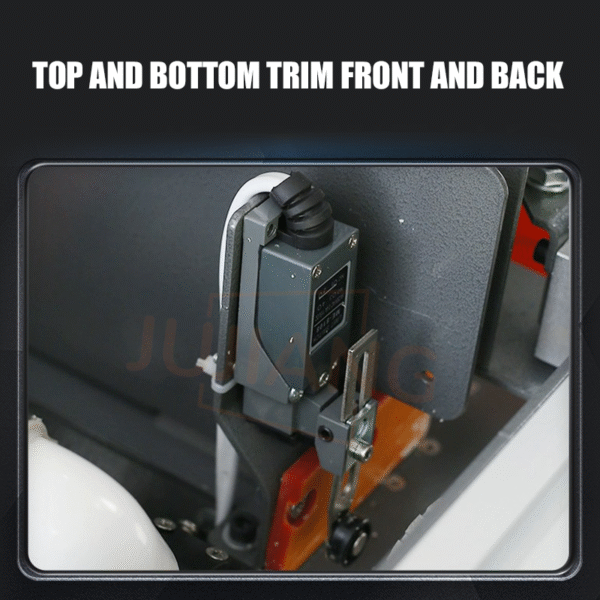

4.The use of square slide rail realizes profiling and trimming, and the use of imported brand 4-blade alloy arc knife to trim the plate effect arc shape, automatic end cutting, use two big diameter dust collectors, close fit, collecting effect can reach 99%. For crawler transmission, we use steel rod slide rails, which is more stable in delivery, and the real materials can be seen!

Service and Guarantee

1. We welcome customization of body color, logo, label shape. structure. etc
2. The LUBAN brand welcomes you to become our exclusive regional agent
3. We provide free picture and video shooting services for our agents.
4. This machine is provided with lifetime technical support and one-year warranty service by LUBAN Machinery.
5. We provide global retail customers with a variety of platform transaction methods, and door-to-door shipping services
Specification
Model SBJ190Z






Function

Automatic plate feeding Edge type Both curved and straight lines
Automatically break the belt Voltage 220v 50hz
Double-sided gluing Rated power 4kw
Upper and lower trimming and polishing Rated air pressure 0.4-0.6 mpa
Curved and straight edge banding Suction 1200w
Large diameter surrounding vacuum Belt power 25w
Transmission power 120w Sheet thickness 10-50mm
Heating power 800w Strip thickness 0.5-2.5mm
Polishing power 180w*2 Glue capacity 1000ml
Trimming power 800w*2 Overall size 1900*560*1300mm
Conveyer belt 0-14m/min Packing size 138*58*64cm
Feed plate 0-14m/min Weight 120kg


Leave a Message

Please fill in the form with your details and we will get back to you as soon as possible.

FAQ

Frequently Asked Question

  • We manufacture , Five sides CNC Drilling Machine, Six Sides CNC Drilling Machine, Computer Panel Saw (beam saw), CNC router, Sliding Table Saw, Edge Banding Machine.
  • Woodworking machines for panel furniture and Solid wood furniture.

For standard machines, it will be 1-2 weeks; for customized machines, it will be 30-60 days, depending on the machine model and the quantity.

Most of the common spare parts are ready in stock. Then we could send them to your address within one week. Some spare parts can be purchased locally.

Machines are under 12 months guarantee without man-made damage, during guarantee if parts refer to quality, customer can get new spare parts to replace broken components.

Low MOQ, 1set for sample checking is available.We will give discounted price under large quantity.

It usually takes 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Generally, we pack our goods in neutral cartons/wrap film under full container.or we will make wooden box.and we also can according to your requirements if any.

We accept EXW,FCA,FOB,CFR,CIF,DAP,DDP etc. You can choose the one which is the most convenient or cost effective for you.

Take-photos-and-videos of the problems and send to us. We will make a satisfied solution for you within 72 hours after we confirm
the problems.

Of course, we accept OEM and ODM.
